| Categories | Electric Vehicle Testing Equipment |
|---|---|
| Payment Terms: | T/T |
| Gas pressure: | 0.1MPa |
| Brand Name: | Sinuo |
| Packaging Details: | Plywood Case |
| Gas flow: | 965±30ml/min |
| Model Number: | SN777 |
| Flame height: | 38±2mm，blue flame |
| MOQ: | 1 |
| Delivery Time: | 30 Days |
| Self-extinguishing time: | 0-9999X0.1S |
| Place of Origin: | China |
| Support net: | 215×75×13mm, grid: Φ0.8 stainless-steel wire with length of the side of 6.4mm |
| Price: | Customized |
| Supply Ability: | 10 sets per month |
| Gas category: | for the methane gas purity of 98%, it can also use the mixed gas or propane gas, flow meter adjustment |
| Certification: | Calibration Certificate (Cost Additional) |
| Company Info. |
| Sinuo Testing Equipment Co. , Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

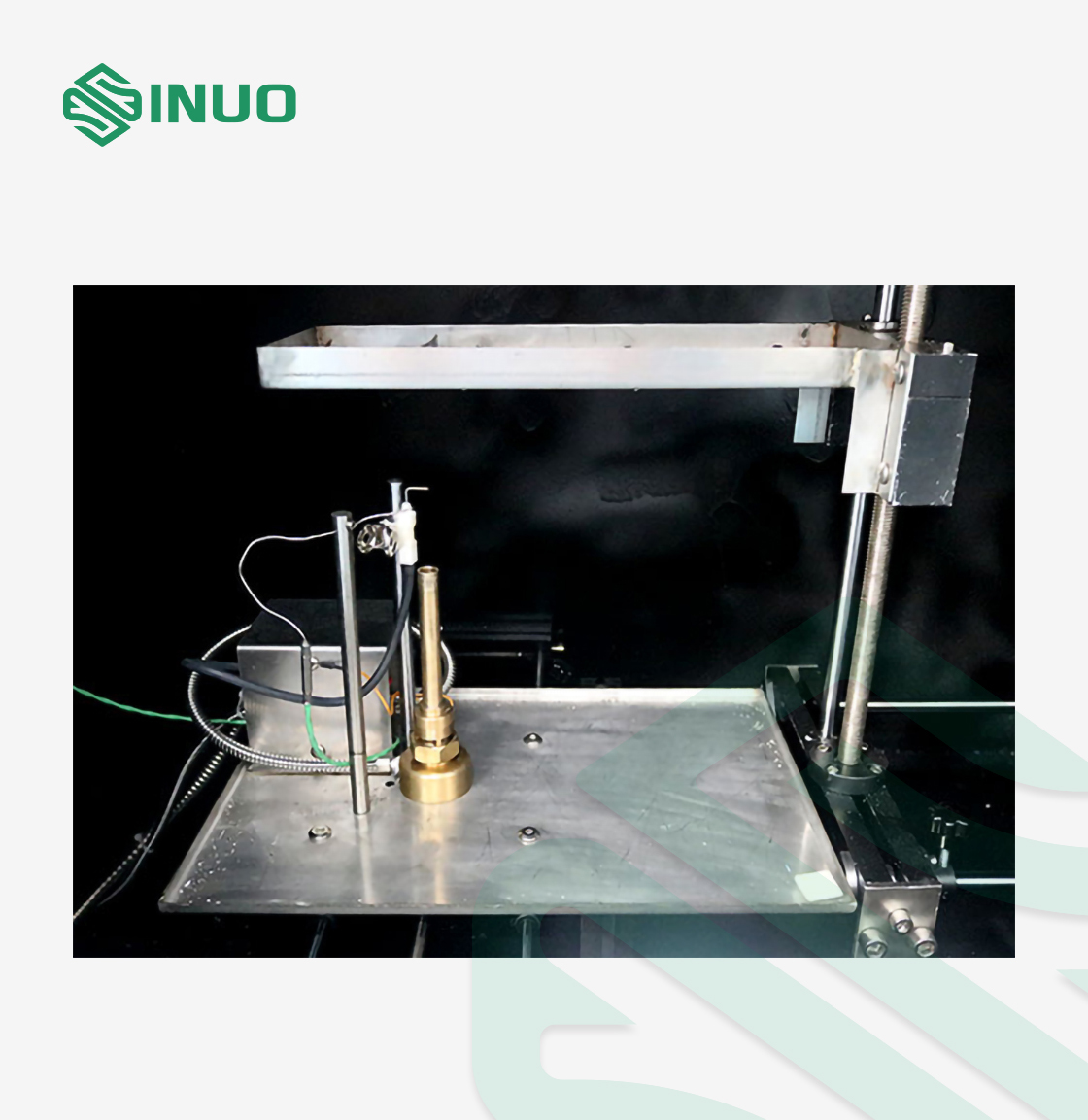

The Cellular Plastic Horizontal Burning Test Chamber is designed for laboratory evaluation of the horizontal burning characteristics of small cellular plastic specimens.
The tester provides a controlled combustion environment for comparing the burning behavior of cellular plastic materials with a density below 250 kg/m³. It is suitable for flammability testing, material screening, fire performance evaluation and product safety testing.
The chamber integrates a precision burner, gas supply, adjustable flame, specimen support mesh, lighting and exhaust system. Its integrated ignition design helps provide a stable and repeatable flame application during testing.
The test chamber provides the main components required for controlled horizontal burning evaluation:
The ignition system incorporates a 0.1-second combustion time delay to help ensure stable gas ignition before the test sequence begins.
| Working voltage | 220V/50Hz |
| Blast burner standard | ISO10093:1998, inner diameter Φ9.5±0.3mm, effective length:100±10mm, with wing section lamp top:48±1×1.3±0.05mm |
| Gas pressure | 0.1MPa |
| Gas flow and gas category | 965±30ml/min, for the methane gas purity of 98%, it can also use the mixed gas or propane gas, flow meter adjustment |
| Combustion / self-extinguishing time | 0-9999X0.1S |
| Distance between the wing top of the blast burner to the test sample | 13±1mm |
| Flame height | 38±2mm, blue flame |
| Support net | 215×75×13mm, grid: Φ0.8 made of stainless-steel wire with length of the side of 6.4mm |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | >0.5 cube, black matte background, with exhaust fan, dimension:1100*550*1200mm, 130kg |
| Testing environment | Temperature: 15°C~35°C Humidity: 45%~75% |
|
