friendly reminder:
The images shown as below are new ones, if you would like a used
same model for cheaper price, please contact us for details! wait
for your futher discussion ,thanks .
Our heavy-duty multi-functional dust suppression truck is an environmental protection powerhouse that integrates efficient
dust suppression, road cleaning, and spraying operations. Equipped
with a large 10 cubic meter water tank and a mist cannon with an
ultra-long range of 60-100 meters, and featuring a special-purpose
jet spray blower and a stainless steel multistage centrifugal pump,
it can be precisely controlled through three modes: manual, remote,
and automatic. This enables it to effortlessly handle dust control
in various scenarios, such as construction sites, mines, and roads.
Built on a second-class Dongfeng chassis and paired with a Dongfeng
engine, the vehicle ensures strong power and stable performance
even when fully loaded, with a maximum gradient ability of 30% and
a top speed of 89 km/h. As a direct manufacturer, we provide
full-cycle after-sales support, contributing to the improvement of
urban air quality with our superior products.
| Component | Description |
| Chassis | Chassis: It adopts the EQ1185LJ9CDE type two-level chassis produced
by Dongfeng Automobile Co., Ltd. This chassis is powerful in power,
has high carrying capacity, advanced technology and reliable
quality.
Engine: The D4.5NS6B220 diesel engine is produced by Dongfeng
Engine Co., Ltd. |
| Water Tank | The water tank has a large volume, allowing for a long working
time. The water tank is optimally designed using the finite element
analysis method and has passed strict reliability tests. The water
tank adopts the advanced one-time tank forming technology, and it
is detected by penetrant flaw detection without damage, ensuring no
water leakage and a long service life. |
| Low-pressure Water Pipeline System | Low-pressure Water Pump: A self-priming double-stage centrifugal
pump from a renowned enterprise is used, which features high
efficiency and good reliability.
Sprinkling Device: It is equipped with washing devices such as
front spraying and middle front-to-back flushing. The two-way
flushing is controlled by pneumatic cut-off valves. By loosening
the two rotating sleeves at the nozzle, the angle of the nozzle can
be adjusted arbitrarily. The front-to-back flushing can wash 6
lanes at one time. |
| Upper Vehicle Engine and Its Transmission Device | The upper vehicle engine uses a diesel engine from a well-known
brand. The upper vehicle engine directly drives the low-pressure
water pump. The transmission links are compact, with high
efficiency and low noise. |
| Mist Cannon System | A stainless steel multistage centrifugal pump + special-purpose jet
spray blower is installed at the rear of the vehicle. It has a
large air volume and can reach a range of 120 meters. |
| Operation Modes | The vehicle adopts a control mode of "manual + remote control +
automatic". When starting and stopping the operation, the opening
and closing of all water pipelines, the rotation of the mist
cannon, etc. are controlled through the operation box. |
Front Spraying Mode
The front spraying device is equipped with powerful adjustable
nozzles, precisely controlled by pneumatic cut-off valves. By
loosening the rotating sleeves at the nozzles, the spraying
direction can be flexibly adjusted. Its strong flushing ability can
cover 6 lanes at a time, effectively removing stubborn stains and
accumulated dust on the road surface. It is suitable for
large-scale cleaning scenarios such as urban main roads and
industrial parks, quickly restoring the cleanliness of the road
surface.

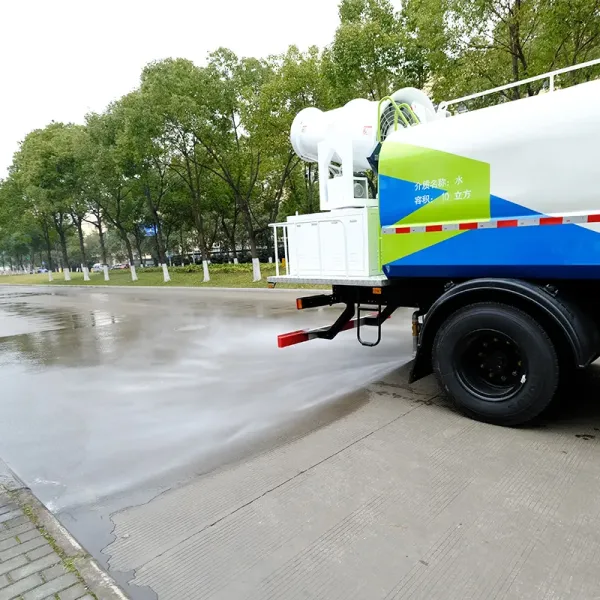

Rear Sprinkling Mode
The rear sprinkling system uses large-diameter nozzles with a wide
and uniform spraying range, which can form a fine water curtain to
achieve the dual effects of dust suppression and moisture retention
on the road. Whether it is a dry and dusty road section or a
construction area that needs to be kept moist, it can effectively
suppress dust and improve the surrounding air quality, creating a
comfortable passage environment for pedestrians and vehicles.
Mist Cannon Mode
The rear of the vehicle is equipped with a stainless steel
multistage centrifugal pump and a special-purpose jet spray blower,
forming a powerful mist cannon system with a maximum range of 120
meters. By generating ultra-fine mist particles, it can adsorb
suspended dust particles in the air and quickly settle pollutants.
It has a remarkable air purification effect on high-dust places
such as construction sites and mining areas, helping to meet
environmental protection operation standards.
Q1. What are your payment terms?
We accept T/T with a 30% deposit, and the remaining 70% balance is
payable prior to delivery. Before you settle the balance, we will
present you with detailed photos of our products and their
packaging for your peace of mind.
Q2. What is your minimum order quantity?
We require a minimum order of just 1 set.
Q3. How do you package your products?
Our packaging is 'naked,' as we transport our trailers via bulk
cargo carriers, Ro-Ro vessels, or 40/45 HQ shipping containers, as
well as through land transportation.
Q4. What is your delivery timeline?
Typically, we deliver within 30 working days following the receipt
of a 30% down payment of the contract value by T/T. However, the
exact delivery schedule depends on the specific products and order
volume.
Why choose us?
1. We proudly serve as a core supplier of top-tier environmental
sanitation products to governments at all levels, reinforcing our
credibility and commitment.
2. Enjoy competitive pricing partnered with unparalleled service
excellence.
3. Collaborations with many celebrated brands showcase our market
reputation and trust.
4. Our production capacity is robust and reliable, meeting the
demands of diverse markets.
5. We boast a wealth of experience in providing outstanding
after-sale service to ensure customer satisfaction.
If our products pique your interest, do not hesitate to reach out
at any time. We eagerly await your inquiries and are ready to
assist!
