| Categories | Fusible Resistors |
|---|---|
| Brand Name: | TYOHM |
| Model Number: | FRL |
| Place of Origin: | China |
| MOQ: | 1K |
| Price: | Please contact us for details |
| Payment Terms: | T/T |
| Delivery Time: | 7-10 work days |
| Packaging Details: | T/B |
| Supply Ability: | Depending on the specific circumstances, it generally takes 5-7 work days to complete |
| Resistance Accuracy: | 0.22~10KΩ |
| Resistance Tolerance: | ±5% ( J ) or ±1%( F ) |
| Resistance Temperature Coefficient: | ±200 ppm/°C |
| Short Time Overload: | 10 times of rated wattage for 5 seconds ( ±2% ) |
| Dielectric Withstanding Voltage: | AC 350V for 1 minutes (No evidence of mechanical damage) |
| Fusing Characteristics: | Please check the document ( Fusing time is within 60 seconds ) |
| Company Info. |
| ASIA AKITA ELECTRONIC TECHNOLOGY(SHENZHEN)CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

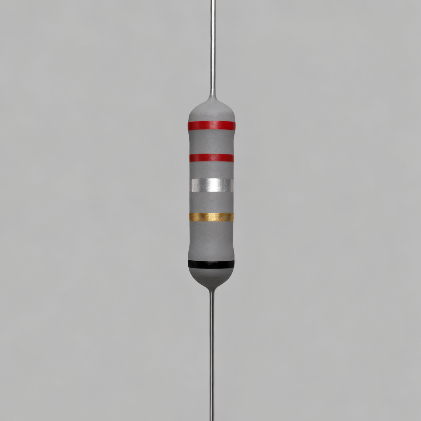

1. It is suitable for protecting circuit boards.
2. Noncombustible insulating coating; Solvent Proof and resistant
to high temperature.
3. Low temperature coefficient ( < ±200ppm/°C ).
4. Uniform in fusing time.
Product Parameters Overview
| Item | Parameter Description |
|---|---|
| Resistor Type | Premium Fireproof Fusible Resistor |
| Temperature Coefficient | 200ppm/°C |
| Operating Temperature Range | -55℃ ～ +155℃ |
| Coating Type | Non-flammable insulating coating |
| Solvent Resistance | Resistant to common chemical solvents |
| Insulation Resistance | 1000MΩ |
Premium fireproof fusible resistors possess a range of excellent properties, providing superior circuit protection in high-temperature, high-humidity, and complex environments. Its non-flammable insulating coating design gives the resistor extremely high safety, effectively preventing fire risks and ensuring circuit safety even under extreme operating conditions. Furthermore, this resistor has excellent solvent resistance, resisting the corrosive effects of common chemical solvents and ensuring stable operation in various environments.
High-performance flame-retardant fusible resistors are widely used in various high-reliability circuit protection scenarios, suitable for power electronics, automotive electronics, home appliances, and industrial control systems.
In high-power circuits such as power modules, inverters, and overcurrent protection systems, they effectively prevent damage or fire risks caused by overcurrent; they also maintain good heat resistance in high-temperature environments, ensuring stable circuit operation.
In automotive electronics, they can be used for battery management systems (BMS) and charging equipment protection, avoiding safety hazards caused by overloads; in home appliance applications, they can reduce the risk of fire caused by electrical faults.
|
