20CrMnTi Small module High-Speed Sewing Machine Gear For Garment Workshops

20CrMnTi Small module High-Speed Sewing Machine Gear For Garment Workshops

Industrial sewing machine gears are precision transmission gears specially designed for industrial sewing equipment such as lockstitch machines, overlock machines, interlock machines, pattern sewing machines, thread trimmers and compound feed sewing machines. Made of high-strength wear-resistant alloy steel through small-module precision machining, high-precision gear grinding and stable heat treatment, they are mainly used for power transmission in mechanisms including head drive, thread take-up, fabric feeding, shuttle rotating, thread trimming and presser bar lifting. Featuring stable operation, low noise, wear resistance, fast start-stop response and long service life, they are core basic components for industrial sewing machines to achieve high-speed, continuous and stable sewing.

Product Features

• Small module and high precision, suitable for high-speed sewing conditions (5000～10000rpm).
• Extremely smooth operation with low vibration and low noise for long-term continuous working.
• Uniform tooth surface hardness, excellent wear resistance, not easy to pitting and abrasion.
• Sensitive starting and reversing, with accurate action matching thread trimming and take-up mechanisms.
• Compact structure and small size, suitable for narrow space of sewing machine heads.
• Minimal heat treatment distortion, high dimensional consistency and strong assembly interchangeability.
• Oil and dust resistance, adapting to long-term continuous production environment in garment workshops.

Technical Parameter Table

Main Applications

• Transmission gears for computerized lockstitch machines, high-speed lockstitch machines and compound feed machines.
• Gear components for overlock machines, interlock machines and heavy-duty sewing machines.
• Precision gears for pattern sewing machines, embroidery machines and CNC sewing equipment.
• Automatic thread trimming, thread take-up and fabric feeding mechanisms of sewing machines.
• Transmission systems for zigzag machines, buttonhole machines, button sewing machines and bartacking machines.
• Gear replacement and maintenance for various domestic and imported industrial sewing machines.

Product Advantages

• Excellent high-speed performance, supporting stable operation up to 10000rpm.
• Low noise and low vibration, significantly improving workshop working environment.
• Wear and fatigue resistant, meeting 24-hour continuous production with long service life.
• High transmission precision, ensuring even and beautiful stitches without skipping or deviation.
• Strong interchangeability, directly replacing gears of brands such as Jack, Zoje, Brother, etc.
• Small-module precision machining with compact structure, suitable for narrow head space.
• Support customization based on drawings, suitable for modification of special sewing equipment.

Production Process

• Clean oil and impurities inside gears, bushings, connecting rods and casing before assembly.
• Install correctly according to assembly clearance to ensure uniform gear meshing without jamming.
• Fill sewing machine oil or special grease to ensure high-speed lubrication.
• Run low-speed test for 3～5 minutes and check running smoothness and noise.
• Gradually increase speed to working speed and test synchronization of stitches and fabric feeding.
• Lubricate regularly, clean fabric dust and debris to prevent jamming.
• Regularly inspect gear wear and backlash change to ensure stable transmission.

Why Choose us?

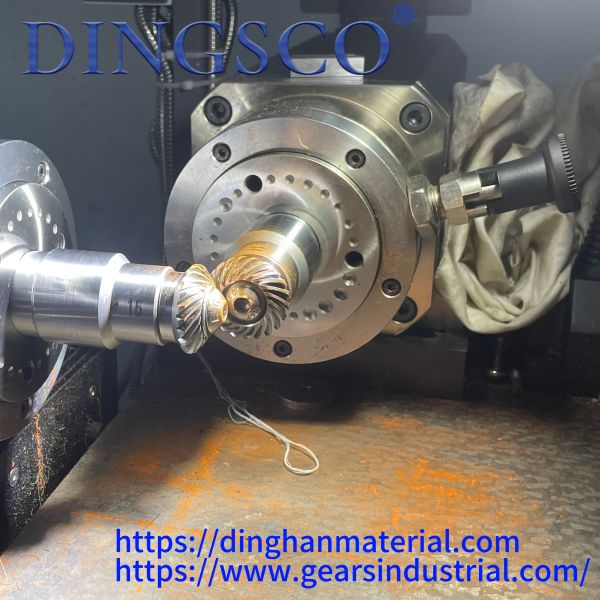

• 7-axis CNC Grinding: Tolerances as tight as ±5μm for quiet, durable operation.
• Strong technical expertise: Doctoral and master’s professionals in spiral bevel gear technology.
• Custom Design: Solutions for high-reduction, high-speed, heavy-load, and low-noise and less teeth for users
• Rigorous Testing: 100% inspection via Gleason metrology systems.

Our company was formerly known as Changsha Double Star Gear Industrial Co., Ltd, which was established in 1994. It is a directly affiliated university-run enterprise founded by Central South University Professor Zeng Tao, the leading expert on spiral bevel gears in China. It was later renamed as Changsha Senjie Gear Co., Ltd (abbreviated as "CSG") in 2016. CSG is a production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears. In 2023, Hunan Dinghan New Material Technology Co., Ltd. was established as a specialized international export business department. CSG has strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

With the quality policy of "scientific and technological innovation, quality first, being first-class firm and customer‘s satisfaction", we have won the trust of well-known domestic and abroad enterprises with stable and excellent quality. It is committed to be a pioneer of the industry of China's small-module spiral bevel gears, and is dedicated to providing service for any related industry requiring industrial robots, CNC turning and milling compound power tool turrets, industrial sewing machines, reducers, bicycles, power tools and aeromodelling. We sincerely look forward to your cooperation!
