20 m³ Dual-Auger Vertical Trailed TMR Mixer with Integrated
Spreader
Pro Series with NM400 Steel, for Efficient Livestock Ranches and
Dairy Farms
General Information
Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2Pro-20S
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
Product Overview
The UHAND 2Pro-20S is a complete feeding solution, seamlessly
integrating a high-capacity 20 m³ dual-auger mixer with a
heavy-duty rear feed spreader. This "mix-and-feed" system
revolutionizes feeding routines by eliminating separate passes,
saving significant time, labor, and fuel. Built with heavy-duty Pro
series principles, it's designed for large operations where
efficiency, durability, and output are non-negotiable.
Features & Benefits

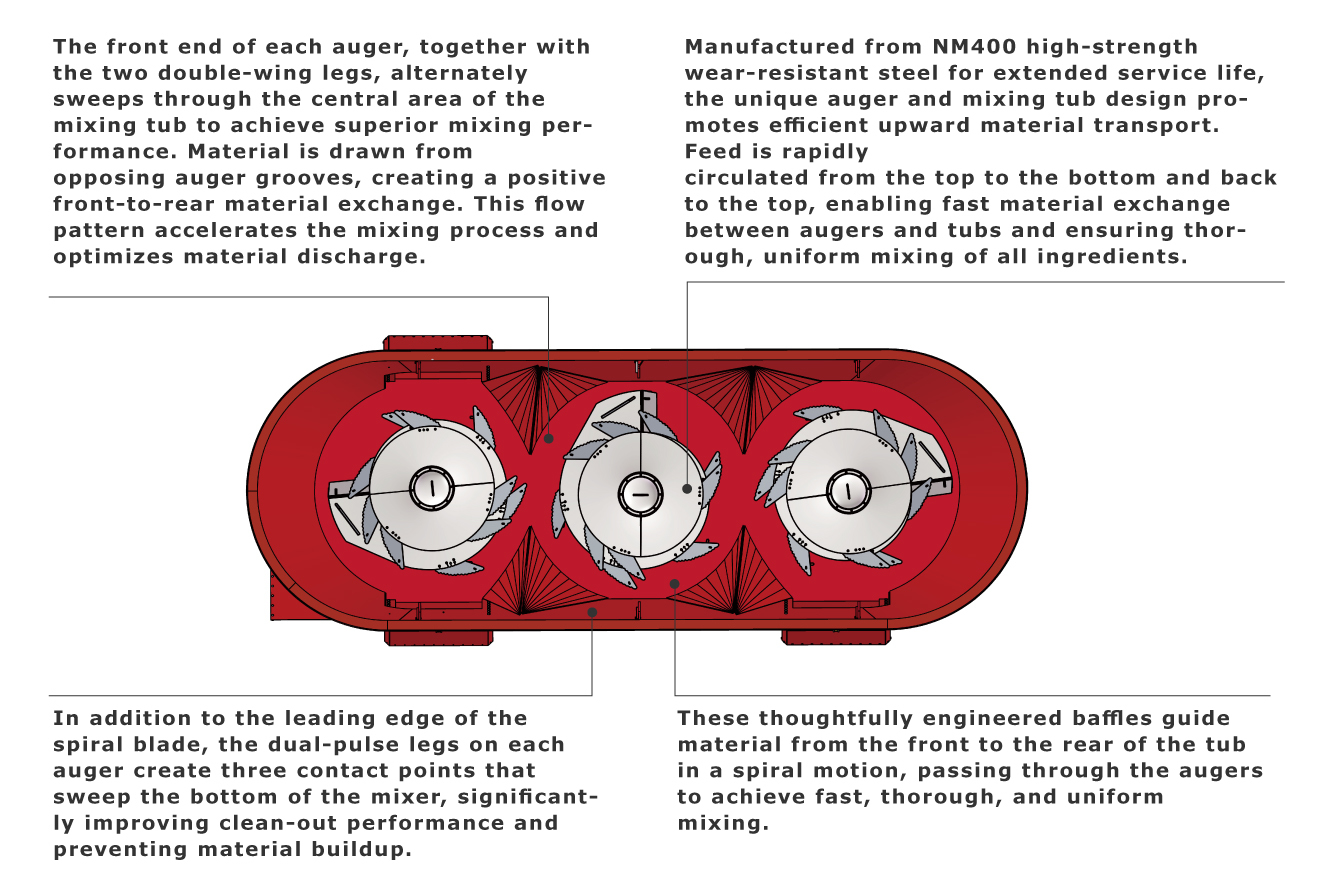

- All-in-One Mixing & Feeding Efficiency: Combines high-performance 20 m³ TMR mixing with integrated
spreading in a single machine pass
- Heavy-Duty Spreader Chassis & Axle: Features 8-ton capacity reinforced axle and double-layer chassis
for exceptional strength
- Versatile Discharge Options: Configurable for flail-type (broadcast) or belt-type (windrow)
discharge to match your feeding strategy
- Optimized for Precise Feeding: Operates at low ground speeds (as low as 2.5 km/h) while
maintaining full power for accurate feed placement

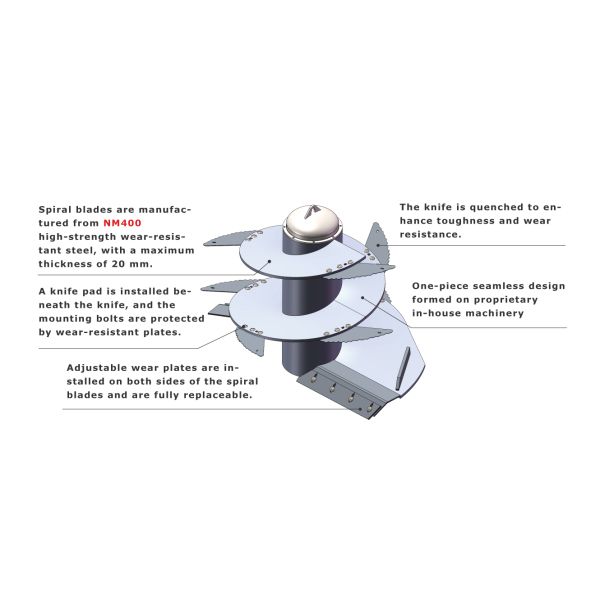

- Pro Series Core Strengths: Includes monolithic NM400 augers, heavy-gauge steel construction,
and premium surface protection
Application Scenarios
- Ultimate solution for large dairies and feedlots maximizing feeding
efficiency and reducing operational complexity
- Ideal for operations with long feed alleys or pasture-based systems
requiring direct mixer-to-feeding distribution
- Perfect for flagship machine investment delivering superior mixing
performance with automated feeding capability
Technical Specifications
| Parameter | 2Pro-20S (with Spreader) |
|---|
| Overall Dimensions (L x W x H) | 7800 x 2560 x 3050 mm |
| Machine Weight | 8500 kg |
| Volume | 20 m³ |
| Required PTO Power | ≥150 hp |
| Number of Augers | 2 |
| Auger Thickness | 20 mm |
| Auger Speed | 540/29 r/min |
| Number of Blades | 16 |
| Blade Material | 65Mn, Tungsten Carbide Coated |
| Cylinder Bottom Plate Thickness | 20 mm |
| Cylinder Side Plate Thickness | 10 mm |
| Tire Specification & Quantity | 8.25R20 x 4 |
Frequently Asked Questions
What are the main benefits of an integrated mixer/spreader?
The primary benefit is dramatically increased operational
efficiency. It combines two machines into one, saving time, labor,
fuel, and equipment costs. You mix and feed in a single pass,
ensuring fresh feed is delivered directly and evenly.
Is the spreader unit as durable as the mixer?
Absolutely. The spreader is built to the same heavy-duty standard,
featuring an 8-ton capacity axle and a double-layer chassis for
exceptional strength. It's designed to withstand the daily rigors
of a large-scale feeding operation.
Can I switch between different spreading methods?
Yes, the 2Pro-20S can be specified with your choice of discharge
system to match your needs: a flail spreader for wide, even
broadcasting or a belt conveyor for placing a precise windrow.
Please specify your preference when ordering.
Does the integrated system require a more powerful tractor?
The power requirement (≥150 HP) is the same as for the standard
2Pro-20 mixer. The machine's design ensures that when the spreader
is engaged, power is intelligently allocated between the mixing and
spreading functions for optimal performance at low working speeds.
