| Categories | Outdoor Advertising LED Display |
|---|---|
| Brand Name: | HSCXLED |
| Model Number: | P3.9/P4.8/P6.25/P5.7/P6.67/P8/P10 |
| Certification: | KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001 |
| Place of Origin: | SHENZHEN |
| MOQ: | 1SET |
| Supply Ability: | 1000SET |
| Delivery Time: | 15-20work days |
| Packaging Details: | Fight case/Wooden case/Honeycomb Box |
| Product Name: | Led Video Display Panel |
| Type: | LED |
| Application: | Outdoor |
| Color: | Full Color Led Screen |
| Pixels: | P3.9/P4.8/P5.7/P6.2/P6.67/P8/P10 |
| Usage: | Outdoor Adverting Display |
| Keyword: | Outdoor aluninum LED screen |
| Brightness: | 5000-8000cd/m² |
| Waterproof: | IP65-IP68 |
| Refresh Rate: | 3840hz, 7680hz |
| Power Supply: | 100-240V AC |
| Cabinet Size: | 960*960mm |
| Material: | profile aluminum |
| Specification: | Video Wall, Led Screen |
| Display Function: | Video/Text/Picture/Time/3D Text/Office/SWF |
| Company Info. |
| Shenzhen H&S Innovation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Outdoor aluminum LED screen LED Display Billboard Sign Board
LED display for Outdoor Advertising/Full Color Advertising LED Display Screen
Full Color LED Display Screen Outdoor / HD Video Wall Advertising Screen
Outdoor LED Display Advertising Screen /Waterproof LED Screen
Outdoor aluminum LED display Paramenters:
| HSCXLED-Outdoor LED display --Outdoor aluminum profile enclosure LED screen | |||||||
| Model | P3.91 | P4.81 | P6.25 | P5.71 | P6.67 | P8 | P10 |
| Pixel pitch | 3.91mm | 4.81mm | 6.25mm | 5.71mm | 6.67mm | 8mm | 10mm |
| LED configuration | SMD1921 | SMD1921 | SMD1921 | SMD 2727 | SMD 2727 | SMD 2727 | SMD 3535 |
| Module size | 500*250mm | 480*320mm | |||||
| Scan mode | 1/16 scan | 1/13 scan | 1/5 scan | 1/7scan | 1/6 scan | 1/5 scan | 1/2 scan |
| Pixel matrix per Module | 128*64 dots | 104*52 dots | 80*40 dots | 84*56 dots | 72*48 dots | 60*40 dots | 48*32 dots |
| Pixel density(dots/sqm) | 65,536 | 43,264 | 25,600 | 30,670 | 22,477 | 15,625 | 10,000 |
| Screen size | 1000*1000mm | 960*960mm | |||||
| Refresh rate | ≥3840HZ | ||||||
| Box material | profile aluminum | ||||||
| Brightness | 4500nit | 4500nit | 6000nit | 5500-10000nit | |||
| Ingress Protection | IP67 | ||||||
| Weight | ≤28kg/m² | ||||||
| Viewing Angle | H 160° / V 160° | ||||||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | ||||||
| Gray Level | 14bit | ||||||
| Working Temperature | -20 -50(℃) | ||||||
| Maximum power | 600W/m² | ||||||
| average power | 200W/m² | ||||||
| Operating Humidity | 10%~95% RH | ||||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||||
| Picture Format | Support JPG,PNG,and other image formats | ||||||
| Life Time | ≥ 100000(Hours) | ||||||
Outdoor aluminum LED display Features:
High-Brightness,Energy-Saving Aluminum LED Display
HSCXLED-Outdoor aluminum LED screen support multiple module model selections,Use standard universal 500*250mm size display module.Aluminum profile box, light and thin,The product has high brightness, high refresh rate,Modular design, low installation and maintenance costs, fast speed, supports front and rear maintenance and high protection level.
Front & RearMaintenance
No need for a rear access channel,offering a sleek appearance and cost-effective structure.
High Protective Performance
Outdoor display screen has high requirements on protection level. HSCXLED-Outdoor aluminum LED screen front and rear protecting level is IP68/IP67. With the highest standard of waterproofing. All-day work, fully capable of any harsh environment, features with anti-corrosion, moisture-proof etc.
Strong Flame Resistance
outdoor LED display screens , high temperature durability, fast heat dissipation with Noise-free, it is able to used at high temperature for a long time without deformation.
All-Weather Durability
Our IP65 waterproof LED modules offer exceptional protection against extreme weather ensuring stable performance and longevity. The fanless power supply with waterproof seals further guarantees durability and reliable operation.
High Refresh Rate
The screen display is smooth without lag,with a high refresh rate of up to3840-7680Hz.fast response speed,and no dragging,lagging,or flickering.The screen display is smooth and stable.High guality modules,Modular design for easy splicing true color high stability and long life.
Smart Control System
For cloud control,Wi-Fi control,USB Disk,4G/5G,our smart control system are allowed to make it.
Outdoor Advertising led display Advantages:
Cost-Effective HD:
Outdoor led display Balances high resolution and lower investment vs. smaller-pitch screens; ideal for large-area outdoor HD advertising.
All-Weather Adaptability:
Outdoor LED advertising LED display screen adopts outdoor sealed waterproof box or integrated die cast aluminum box, with high protection level, meeting the needs of outdoor environment use.Waterproof, dustproof, and temperature-resistant for year-round outdoor operation with minimal downtime.
Low TCO:
HSCXLED - Outdoor LED advertising screens are made of lightweight and convenient materials, and support front and rear maintenance modes.Energy efficiency, long life, and easy maintenance reduce power, labor, and replacement costs over the lifecycle.
Strong Visual Impact:
Our outdoor display screen uses high-quality LED chips, IC, and PCB for outdoor advertising,Dynamic video, rich colors, and large-format display capture attention better than static posters; programmable content supports targeted, real-time campaigns.
Scalable & Customizable:
As a LED display supplier with 10 years of experience, HSCXLED supports customization for both outdoor advertising LED displays and indoor high-definition LED displays. We offer ODM/OEM services.
HSCXLED- The led screens Spliceable to any size; supports flat led screen, curved led display screen, or special shapes led to fit architectural and branding needs.nd branding needs.

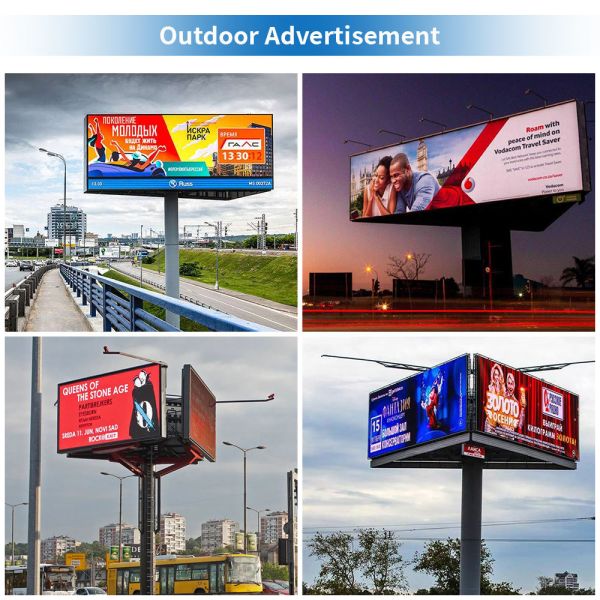

Outdoor Advertising Led Display Applications:
Advertising publish,retail store,shopping mall,display of dishes,welcome display,self-service business,exhibition hall,Restaurant & Hotel Supplies,education,medical treatment...
