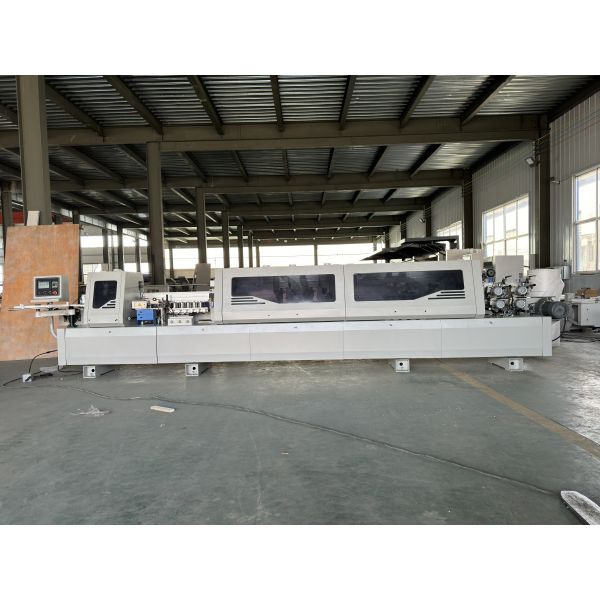

BHM388YJ Intelligent Edge Banding Machine
Elevate your woodworking production line with the BHM388YJ Edge
Banding Machine. Engineered for precision and efficiency, this machine integrates
advanced PLC control with a comprehensive 10-step processing flow
to deliver flawless edge sealing on a wide range of panels. Whether
you are processing melamine, PVC, or acrylic edges, the BHM388YJ
ensures superior bonding strength and a mirror-like finish.
Product Overview
At the heart of the machine lies a Standard PLC Microcomputer Control System. Utilizing time control principles, this intelligent system
manages all machine actions with high sensitivity and rapid
response. Combined with a Delta Touch Screen interface, operators
can easily monitor and adjust settings, ensuring low failure rates
and enhanced safety during continuous operation.
We believe in quality engineering. The BHM388YJ is assembled using
world-renowned brand accessories to guarantee longevity and
performance:
- Drives: High-frequency motor & Conveyor motor (Changchuan Motor).
- Control: Delta Touch Screen, Schneider Electric switches, and SICK sensors.
- Transmission: HIWIN linear guide rails and AirTAC pneumatic components.
Key Features
- Dimensions: 6700 x 750 x 1500 mm | Weight: 2000 kg
- Power Supply: 380V/50Hz | Total Power: 15.8 kW | Air Pressure: 0.7 MPa
- Conveyor Speed: 18–24 m/min
- Processing Range: Board Thickness: 10–60 mm | Edge Band Thickness: 0.3–3 mm
- Min. Board Size: 50 mm (width) x 70 mm (length)
Powered by a standard PLC microcomputer and enhanced with
responsive encoder feedback, this machine offers remarkable
operational stability and ease of use. The intelligent control
system not only simplifies setup and adjustment but also
significantly boosts safety and repeatability, run after run.
Ideal for manufacturers seeking to elevate their finish quality
while optimizing workflow, the BHM388YJ Edge Banding Machine is
your partner for achieving efficient, professional, and impeccable
edges on every project.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|
| Outline dimension | 5000*750*1500mm | Conveyor speed | 18~24m/min |
| Machine weight | 1500KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 13.5KW | Working pressure | 0.7Mpa |
| Plate thickness | 10~60mm | Edge banding thickness | 0.3~3mm |

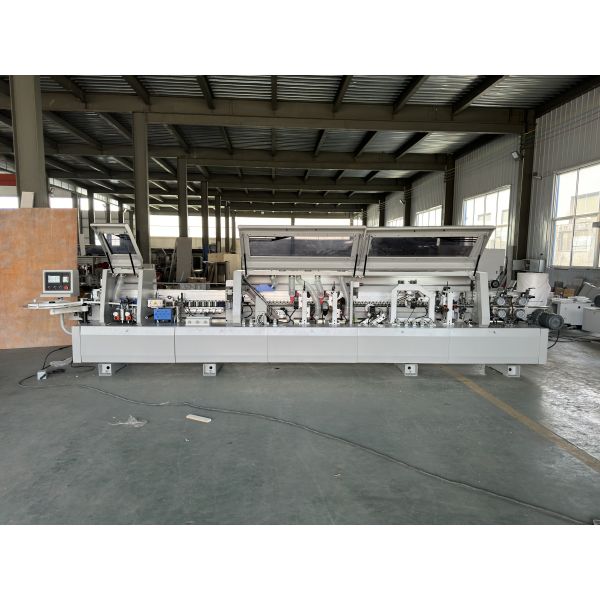

Complete Processing Sequence
The BHM388YJ is designed to handle complex edge banding tasks in a
single pass. Its robust structure supports a full sequence of
operations:
- 1. Pre-milling: Double milling cutters trim burrs and non-perpendicular edges for a
perfect base.
- 2. Glue Coating: A spiral-structure glue tank heats hot melt adhesive to ensure even
application and strong adhesion.
- 3. End Cutting: A single guide rail cutter precisely trims the board ends.
- 4. Rough Trimming: Prevents veneer breakage and acts as the first leveling process for
PVC/Acrylic.
- 5. Fine Trimming: A high-speed oblique cutting motor with an alloy disc ensures
smooth, precise trimming.
- 6. Scraping: Eliminates ripple marks caused by non-linear cutting, smoothing the
edge material.
- 7. Flat Scraping: A secondary light scraping process for an even better finish.
- 8. Buffing: Polishes the edge for a smooth, effective, and beautiful result.
- 9. Corner Rounding: A contour-tracking device smooths the end face for a professional
look.
Operation Process
The edge banding machine performs all operations in one pass:
gluing, pressing, rough trimming, end trimming, corner trimming,
vacuuming, secondary scraping, and buffing.
After-Sales Service
Global offline service network across Europe, Latin America, Asia,
and Africa with long warranty period and free complimentary
accessories.
With a sturdy build and a conveyor speed of 18-24 meters per
minute, this machine is ideal for medium to high-volume production
environments. The integration of pre-milling and multi-stage
trimming/scraping ensures that even challenging materials like
acrylic are processed with zero defects.
Upgrade your factory's capabilities today. Contact us for a quote on the BHM388YJ Edge Banding Machine.
Frequently Asked Questions
Can customized services be supported?
Yes, we can customize the color, size and logo you need.
Where is your factory located?
We are a Chinese manufacturer in Qingdao City, Shandong Province.
Can you make the machine according to my design or prototype?
Yes. We have professional designers to create the most suitable
production plan.
Is the machine easy to operate for first-time users?
Yes, we provide guide videos and English instructions, plus free
professional support.
What's your MOQ and delivery terms?
MOQ is 1 set. We ship directly to your country port with
competitive freight rates.
How is your after-sales service?
24/7 online support with optional overseas installation service.
What if my machine needs repair?
We provide free online training and warranty repairs for major
issues.
Order Fulfillment and Shipping
The edge banding machine is typically shipped within 15-30 business days after order confirmation. Delivery times may vary depending on the
shipping destination. We will provide tracking information for your
convenience, and all machines are packed carefully to minimize the
risk of damage during transport.
