5MP 2K 1080P AF USB2.0 Camera Module:

TYS-U5MAF-V01 USB2.0 camera module AF drive free with MIC 5MP 2K 1080P CMOS image sensor.Supports MJPEG, YUY2 and other output formats, uses standard USB 2.0 high-speed interface, and complies with UVC protocol. It has plug and play characteristics and can be directly used on systems such as Windows, Android, Linux, Mac OS, etc.

1/5 inch 5MP 2592*1944 high resolution 2K 30fps AF no distortion lens USB camera module with MIC. The GC5035 sensor itself adopts a low-power design, enabling the whole camera module with low power consumption and compatible with various electronic products with strict power budget. The autofocus function eliminates the hassle of manual focusing. Whether capturing static subjects or moving people and objects, it can quickly bring the scene into sharp focus and ensure excellent imaging performance.

Specification:

Technical & Mechanical:

• Power Supply Voltage: USB_5V±5%

• Max Working Current: 80-90mA

• Operating Temperature: -30°C to +70°C
• Stable Temperature: 0°C to +60°C

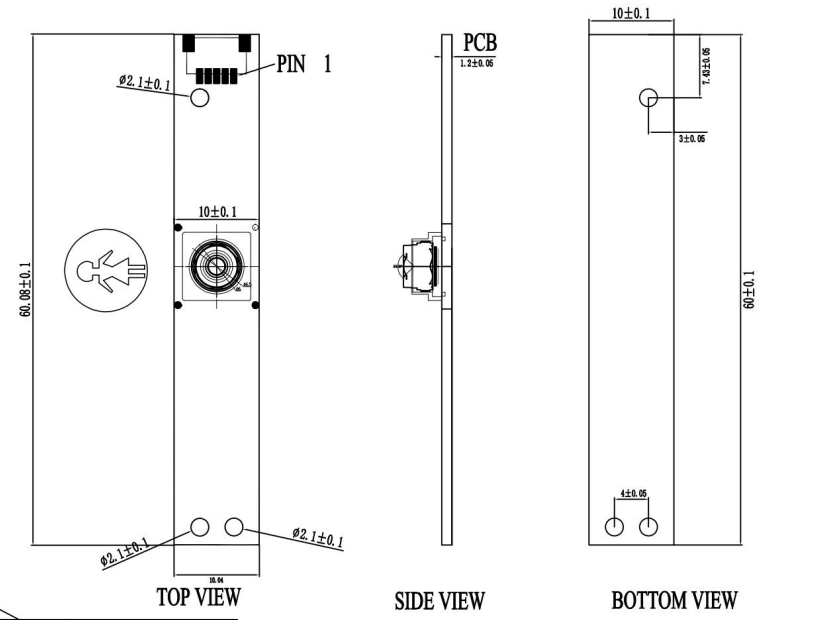

• Module Size: 60mm x 10mm x 5.8mm
• Customization is fully supported

5MP AF 2K 30fps USB camera module with MIC Application scenarios:

GC5035 5MP 2K 1080P 30fps AF drive free USB video conferencing and remote education camera module with MIC. It can be used as an external computer device for enterprise remote video conferencing or applied in remote education scenarios. Its 5 million pixels can ensure clear presentation of participants, teachers, and students' portraits. The built-in microphone can clearly capture the voice of the speaker, allowing for smooth two-way voice communication and enhancing communication and interaction effects.

USB2.0 camera module with MIC 5 million high definition 2592*1944 AF GC5035 CMOS sensor for face recognition and access control system.Installed on access control devices in companies and residential areas. While completing facial recognition and identity verification through camera modules, microphones can help visitors communicate with internal personnel through voice communication, making access control management more convenient and efficient. For example, visitors can call residents to confirm door opening through microphones.

Low price GC05A2 5MP 2K 1080P 30fps AF no distortion USB2.0 camera module with MIC.This camera module can be used in robot vision systems. During the process of identifying, detecting, and grasping components on the production line, the microphone can collect additional audio information such as equipment operation sound, providing more dimensional data references for fault warning, production status judgment, etc. The camera provides image support for visual analysis.

Tuyuan Shun Intelligent (Shenzhen) Co., Ltd. was established in 2013 and

located in Shenzhen.Guang dong China. The independent R&D products,A strong factory for designing, producing, and selling CMOS camera modules.We have been deeply involved in the camera module industry for over 10 years, providing professional camera module solutions for many well-known enterprises at home and aboroad in differentiated fields.

With modern management and advanced technological innovation, Tuyuan Shun has strong system integration capabilities in the fields of R&D, design, production, and differentiation. We provide camera modules and SOC solutions with MIPI, DVP, SPI, HDMI, AHD/CVBS interfaces for domestic and foreign customers, including various algorithm integrations.It is widely used in face recognition, biometric recognition, liveness detection, AI toys, Iris recognition, machine vision, license plate recognition, drones, All-in-one machine,ATM and Advertising machine, self-service terminals, image transmission,  QR bar code scanning, water and electricity meter recognition, infrared detection, Pipeline inspection, smart homes, security monitoring, motion cameras, industrial inspection, and automated production lines.

Our company aims to create a differentiated advantage of "specialization, refinement, and novelty". On the basis of existing technological accumulation, open up new tracks with high potential. Provide customers with integrated OEM/ODM services including customized development, technical support, and post maintenance.
