Fully Automatic CNC Vertical Ring Rolling Machine with Wide Size Range for Stable Ring Rolling

Categories Vertical Ring Rolling Machine
Brand Name: Duolek
Model Number: D51K
Place Of Origin: China
MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Payment Terms: L/C,T/T
Delivery Time: 45-75 Working Days
Packaging Details: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Name: DRC-D51K Type CNC Vertical Ring Rolling Machine
Sensitive operation: Operators Can Quickly Adjust According To Needs
Control System: CNC Hydraulic, CNC Servo PLC
Equipment advantages: One round rolling forming
Ring components: Higher Precision, Strength, And Hardness Of The Ring Components
Application scope: Bearing rings, flanges, gear rings, etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fully Automatic CNC Vertical Ring Rolling Machine with Wide Size Range for Stable Ring Rolling

Fully Automatic CNC Vertical Ring Rolling Machine
Our D51K CNC vertical ring rolling machine integrates energy-saving concepts with cutting-edge manufacturing technologies. This fully upgraded model offers higher precision and enhanced functionality, opening new possibilities for intelligent and efficient environmental component manufacturing.
Advanced Features
  • Enhanced accuracy and functionality with superior processing capabilities
  • Larger rolling ratio for precision forming of complex shaped products
  • Servo control signal wheel actively participates in forming, compensating for rounded corner defects
  • New human-machine interface with one-click storage and retrieval of processing parameters
  • No manual mechanical adjustment required - simple parameter input for different products
  • Easy operation for workers with minimal training
  • Optimized loading/unloading space for robotic arm integration and automated forging units
  • Remote monitoring and diagnostic capabilities for reduced downtime
Technical Specifications
Model160250350450550630800100012001300
DRC-D51K(H)160250350450550630800100012001300
DRC-D51K(P)160250350///////
Nominal outer diameter (mm)160250350450550630800100012001300
Rolling outer diameter range (mm)55-16080-250180-350250-500350-600380-630400-800500-1000600-1200600-1300
Ring rolling height (mm)40130160230230260260260260260
Radial rolling force (KN)50150300500550700800800800800
Linear rolling speed (m/s)2.51.81.51.51.31.31.31.31.31.3
Cylinder stroke (mm)50100110130150150200250250350
Note: 1. K (H): Main transmission uses hydraulic device. 2. K (P): Main transmission uses pneumatic device.
Industrial Applications
Ideal for high-precision mass production of bearing rings, gear rings, flanges, and various complex shaped rings. The preferred equipment for intelligent ring processing in aerospace, new energy vehicles, and high-end equipment manufacturing industries.

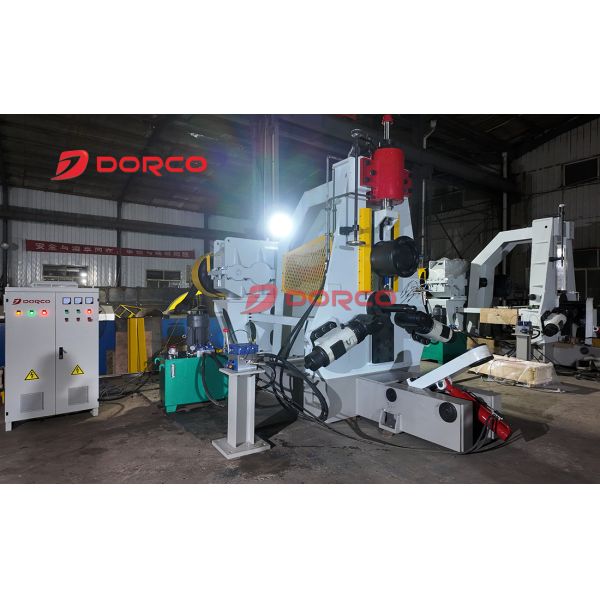

Fully Automatic CNC Vertical Ring Rolling Machine in operation Close-up view of CNC Vertical Ring Rolling Machine components
Quality Fully Automatic CNC Vertical Ring Rolling Machine with Wide Size Range for Stable Ring Rolling for sale
