3G HD-SDI HDMI 30 Pin LVDS Cable Sony Camera Converter Board

Converter Board for Sony Camera with Output 3G/HD-SDI and HDMI

Overview

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500 / FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Features

• Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
• SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s
• Compliance with HDMI1.4B 3D and HDCP1.2 standard
• Support HDMI video resolution up to 1920*1200@ 60Hz
• Board and camera management via RS232/TTL
• Board and camera management via RS485/TTL
• Power supply: 9 to 12 VDC, 6 W (including camera)
• Dimensions (W x L x H):70mm x 55mm x 18.5mm
• Camera output 30pin LVDS Cable

Model: LNK-Convert-Sony

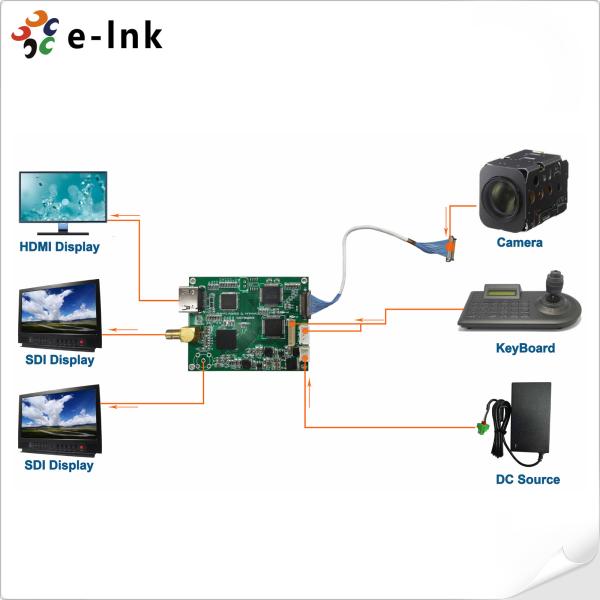

Typical Application

Technical Indexes

Ordering Information
