60W USB C Universal Adapter 15V 20V 5V 12V USB Power Plug Wall Adapter

60W 5V 12V 15V 20V Universal USB-C Power Adapter UAB Power Plug Wall Adapter

v EFFICIENCY VI

v 65W PD OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v Interchangeable AC plugs

FEATURES		SAFETIES APPROVALS		PRODUCTS PICTURE
1.Capablebattery slots monitors and charges independently; 2.Automatically identifies Li-ion,Ni-MH and Ni-Cd rechargeable batteries; 3.Features reverse polarity protection; 4.Designed for optimal heat dissipation; 5.certified by both RoHs and CE.		Interchangeable Plug v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model	Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	C804	5V	3000mA	30mV		VI Level
	C804	9V	3000mA	30mV		VI Level
	C804	12V	3000mA	40mV		VI Level
	C804	15V	3000mA	40mV		VI Level
	C804	20V	3250mA	50mV		VI Level
	C804	5V	3000mA	50mV		VI Level
INPUT SPECIFICATIONS			GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC	Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz	Efficiency		VI
Input Current		0.5A Max	Standby Power		0.2W MAX
Inrush Current		40A Max	Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS			ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V/ 9V/ 12V/ 15V/ 20V	Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA	Cooling		Convection
Output Power Range		65W Max	Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery	Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery	Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max	PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal	Physical Specifications		66mm *66mm *29mm
Line Regulation		1% max	SAFETIES STANDARD
Output Regulation		±5%	Safeties Standard		62368 / 60950 / 61558

Shenzhen Shi Yingyuan Electronics Co.,Ltd wasestablished in 2006 and located in Shenzhen, China, and our production . Which is a professional service provider dedicated at the R&D, design, manufacture and distribution of a wide range of products. We play the team's strength, respond to customer's needs quickly, promise to provide high quality products, services and solutions to customers, create values for every customer and achieve mutual benefit and win-win development. With more than 30 professional technicians and engineers. our R&D have developed hundreds of products and obtained more than 30 patents.
		Passed ISO9001 quality management system, and ISO14001 environment system, promote management level. We committe to power adaptor and smart charger develop, innovate, keep developing and promoting power products abreast of customer needs;
Yingyuan strive to create the benchmark of safety products, applied the different industry safety certifications for all products, including: IT,AV/IEC62368; Home appliances/IEC61558; battery charger/IEC60335; LED/IEC61347; Medical/IEC60601; all power adaptor got UL,CUL,FCC,CB,GS,CE,SAA,C-tick, PSE,BSI,KC,CCC etc
	3,000,000 PCS Monthly Capacity! 25 Days Lead Time!

Factory Certification ISO 9001 Quality management system ISO 14001 Environment management system BSCI Business Social Compliance Initiative Certificate
Safety Certificates UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc

Advantage:

1. Quality control: Very strict testing process for each product

2. Use the high quality and high production capacity

3. Long standby time,long warranty, long life, short delivery time

4. Very compatitive price for customer

5. Fast delivery,we can accept DHL,EMS,FEDEX,etc.

6. Globle UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries

We are specialized in the design, manufacture of 5W to 120W power supplies, vehicle power adapters, USB chargers, and 100W to 3600W battery chargers. Almost all our products are with safety approvals such as UL, CE, GS, RCM, PSE, KC, KCC, BS, CCC, and so on. Our customers are from all over the world including the United States, Canada, Europe, Japan, Korea, and so on.

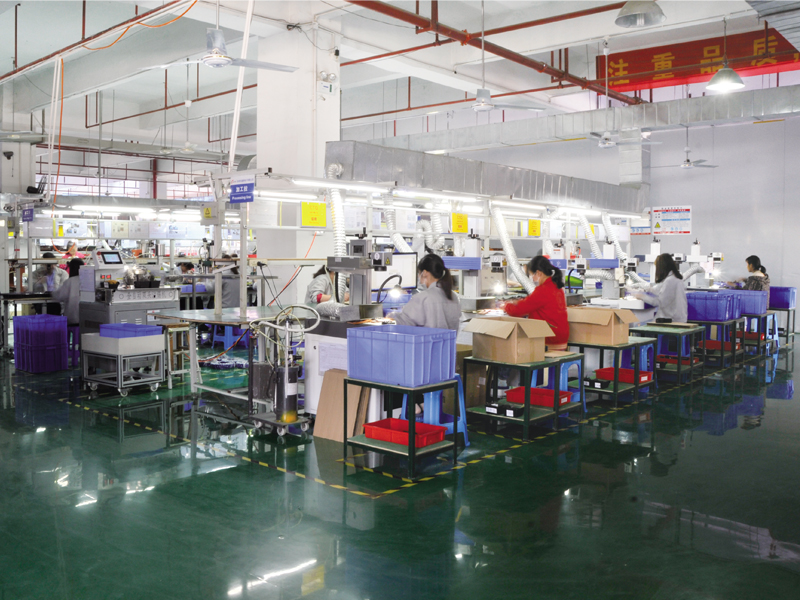

Our R& D department has more than 30 professional technicians and engineers. During these years, we have developed hundreds of products and obtained more than 30 patents. Our battery charger and usb charger factory is equipped with a total of 8 automatic production lines. And thanks to modern production and testing devices, our factory stable output can reach 2.4Millions units/ month.

Always attaching great importance to product quality and environmental protection, we are approved by the ISO9001 quality management system and ISO14001 environment management system. Over the years, our factory has won credibility from numerous Chinese and international customers. Our ideas are Integrity, Dedication, Practicability, innovation and to be one of the leaders in this industry. Warmly welcome you to visit us and make win-win cooperation!
