| Categories | Optical Polarizing Microscope |
|---|---|
| Brand Name: | Phidix |
| Model Number: | M14107 |
| Certification: | IATF16949，CE |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 PCS/Month |
| Delivery Time: | 15-20 Work Days |
| Packaging Details: | 1 PC/Carton |
| Color: | White |
| Customization: | OEM, ODM |
| Packing: | 1 PC/Carton |
| Warranty: | 1 year |
| Drawtube: | Trinocular |
| Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days |
| Eyepiece: | WF10X |
| Illumination: | Halogen Lamp or LED Lamp |
| Magnification: | 50X/100X/200X/400X/1000X |
| Camera: | Optional |

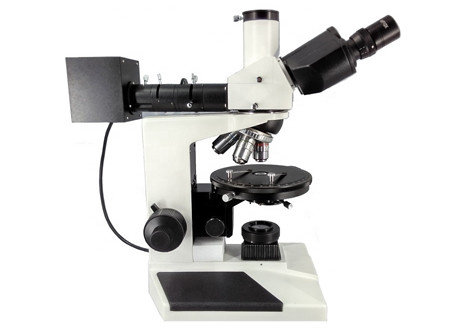

40X-1000X Petrographic Polarizing Microscope With Reflected Illumination And Transmission Illumination
M14107 40X-1000X Petrographic Polarizing Microscope With Reflected Illumination And Transmission Illumination. It is special designed and used to be used petrographic field with polarizing kits.
Features:
- It is a high cost-performance ratio microscope with excellent optical system.
- It is special designed and used to be used petrographic field.
- Polarizer and analyzer can realize polarization.
| Item | Description / Value |
| Optical system: | Plan Achromatic optical system. |
| View tube: | Hinge type binocular, 30°inclined, 360°rotaing. Inter-pupillary distance adjustable range:54-75mm, |
| Eyepiece: | PL10X/20mm |
| Objective: | Long work Plan achromatic metallurgical objective: Optional: 4X,10X, 20X, 40X, 60X, 100X. |
| Polarizing kits: | Analyzer: Built-in analyzer with scale, removable from optic path. 360°rottable with 0.1°L.C. λ-Gypsum plate(1st.order red compensating plate, 560nm). 1/4λ Mica (145nm). Quartz wedge (I-IV order). |
| Nosepiece: | 4-position/Quadruple. |
| Focusing system: | Coarse and fine focusing knobs on both sides. |
| Stage: | Double layer mechanical stage/platform, size: 150mm diameter. |
| Illumination: | Transmission illumination and Reflected illumination. |
| Camera: | Optional |
|
