| Categories | Drilling Rig Tools |
|---|---|
| Brand Name: | XITAN |
| Model Number: | BQ,NQ,HQ,PQ |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu，china |
| MOQ: | 1 pc |
| Price: | USD 10---50 Dollars |
| Supply Ability: | 500+pcs+month |
| Packaging Details: | steel frame |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Type: | BQ,NQ,HQ,PQ |
| Length: | 1.5m,3m |
| Tempering: | HRC30 |
| Company Info. |
| Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

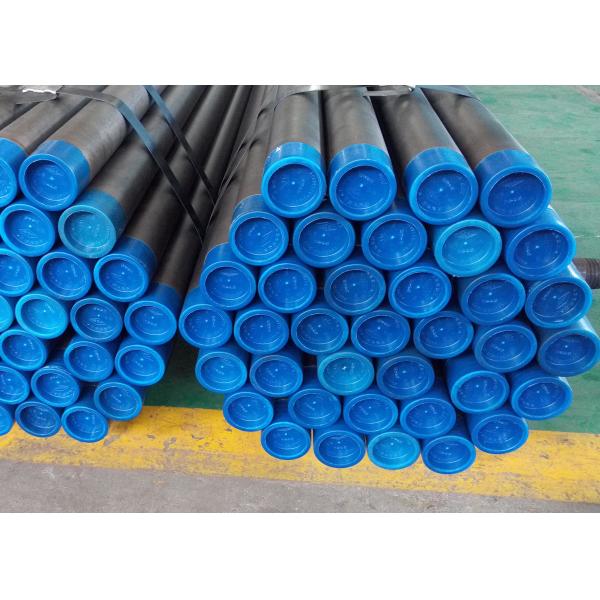

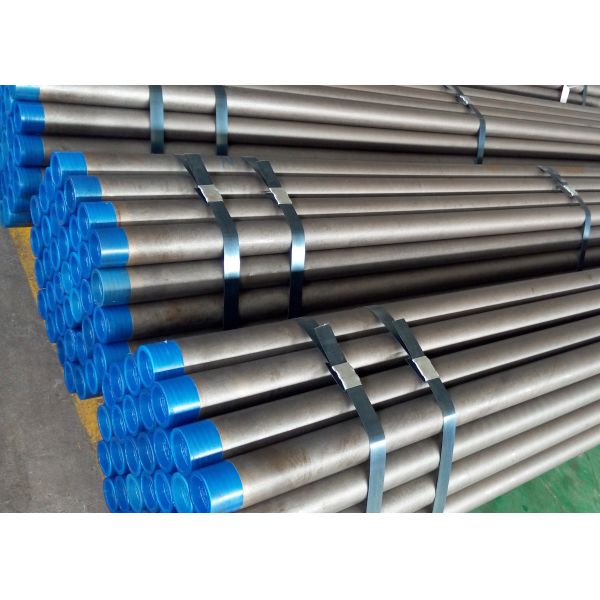

BQ,NQ,HQ,PQ wireline drill rods
Description of wireline drill rod:
This wireline drill rod is main part that connect the drilling rig with diamond bits. Wireline rod features good wear resistance, optimal tensile strength capacity and good torsional property.
Technical Parameters Of Wireline Drill Rods
| No | size | Drill rod | Thread type | Heat | Raw material | Designed hole depth | |
| OD mm | ID mm | treatment | |||||
| 1 | BQ | 55.6 | 46 | DCDMA | Heat treament whole pipe | ZT850 | 2000M |
| 2 | NQ | 70.5 | 60.5 | 2000M | |||
| 3 | HQ | 89 | 77.8 | 1500M | |||
| 4 | PQ | 114.3 | 103.2 | ZT520 | 800M | ||
|
